Faskally Junction

O Gauge - 1950/60s

Faskally Station Faskally Viaduct

Faskally Junction, if it existed, would be just to the north of Pitlochry on the Highland main line. The layout represents a junction leading west to a branch serving Strath Tummel.

The plain track is Peco finescale with all of the point work being hand built from Peco components. The layout is controlled by a DCC system and the points operated by Cobalt motors. All the main signals are servo operated and interlocked with the points.

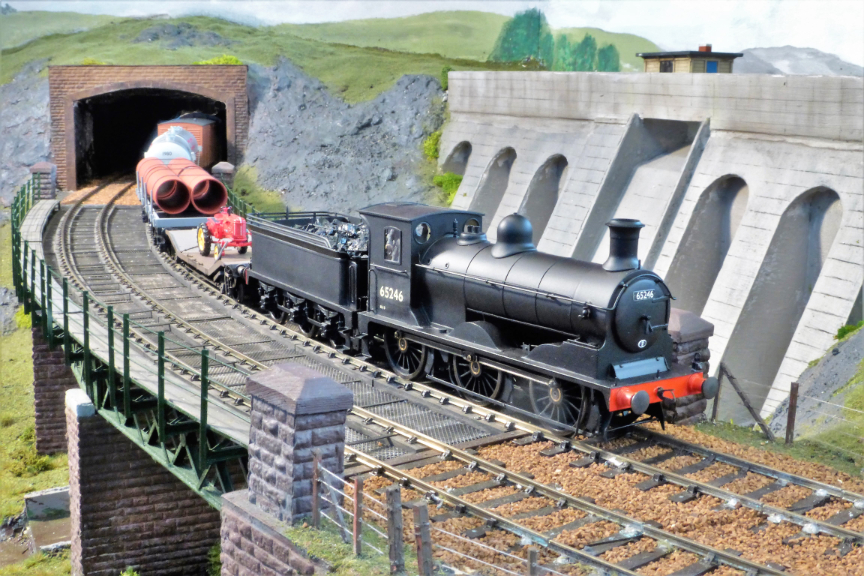

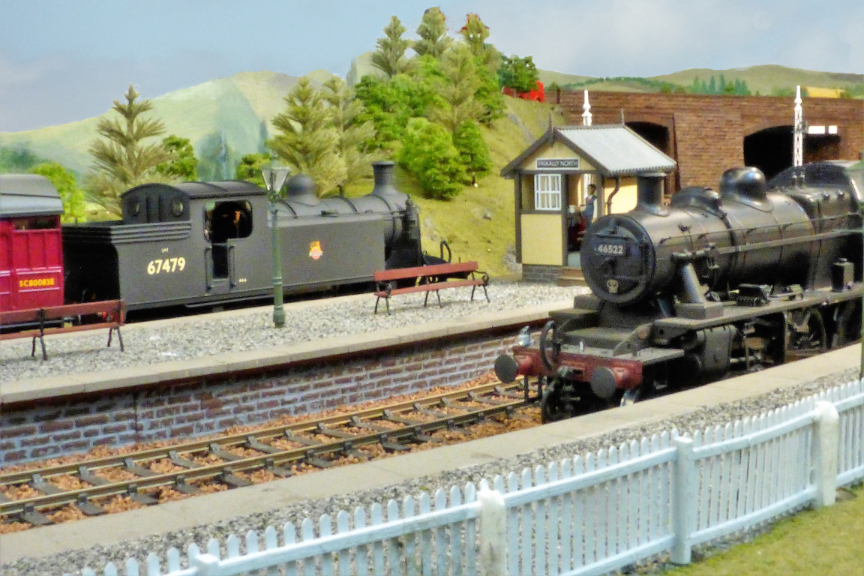

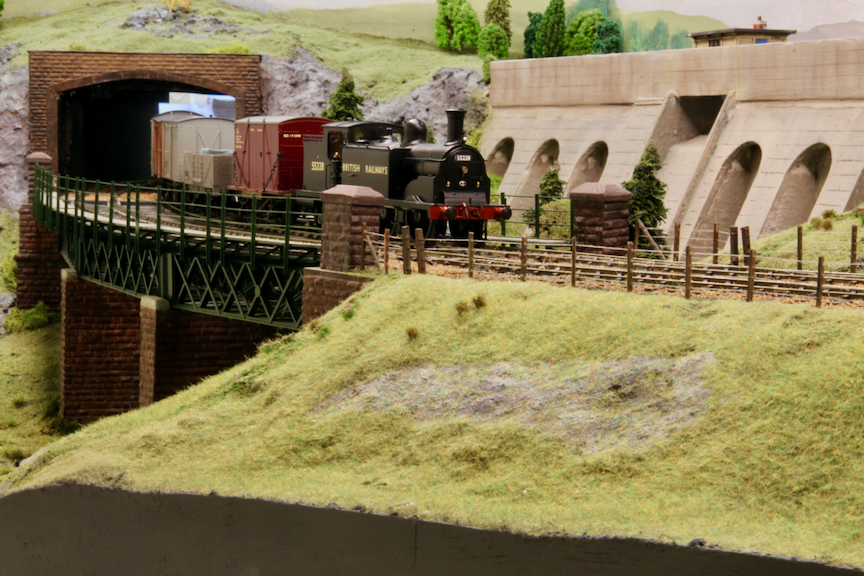

Nearly all the buildings on the layout, together with the viaduct and dam have been scratch built. The station building is that at Newtonmore and the viaduct is a double track version of those on the West Highland Line.

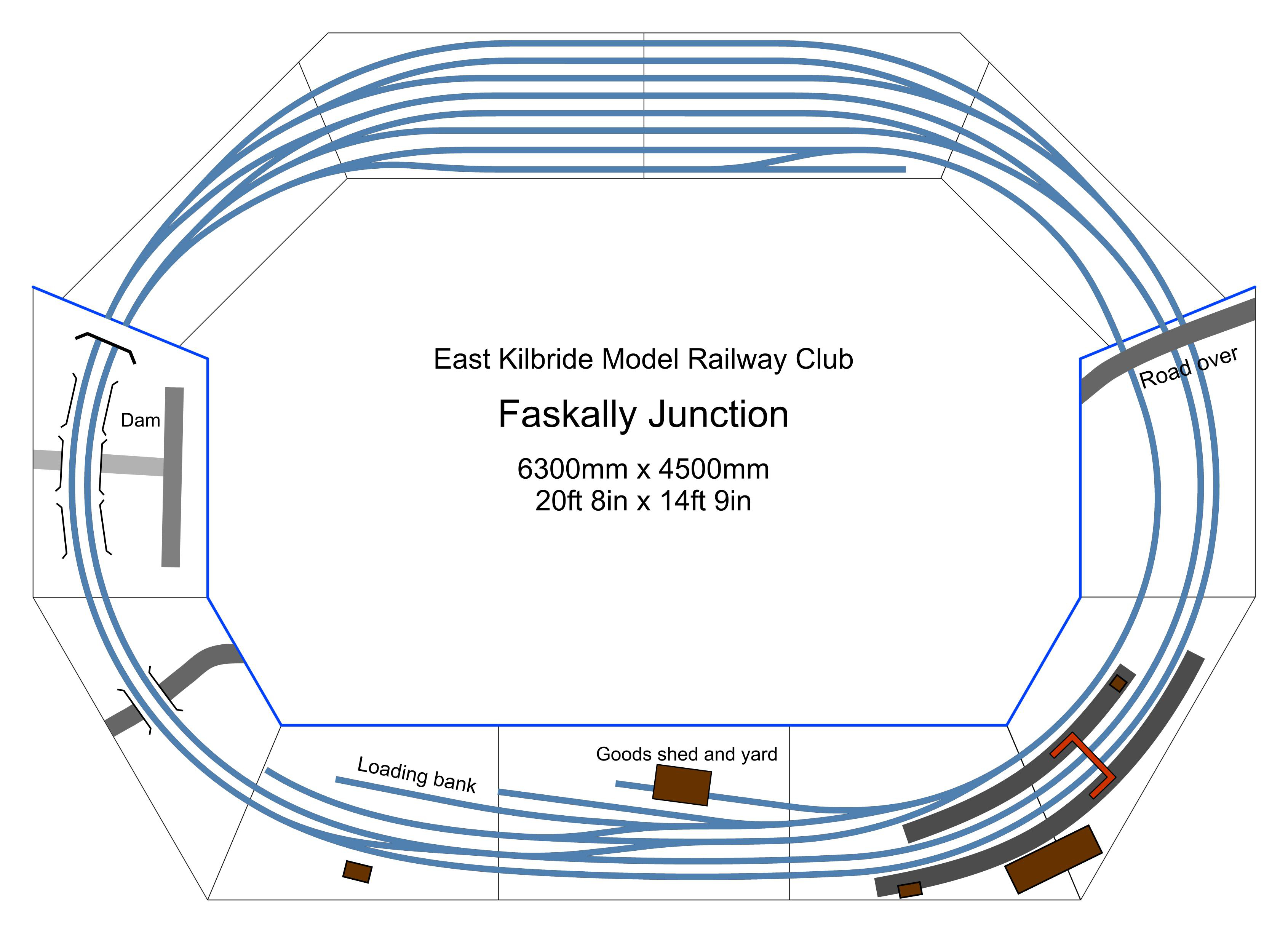

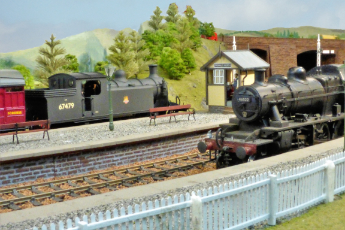

Faskally Station Faskally Station Faskally Station Faskally Station Faskally Track Plan

Faskally Junction Outings

Faskally Junction is due to appear at the following shows:

Date Exhibition
21st October 2023SCOTGOG

Faskally Junction has previously appeared at the following shows:

Date Exhibition
First outing still to come.
